Factory Price LiFePO4 12 Volt 7ah Li Ion Battery Pack for Motorcycle and Scooters

Cycle life:100% DOD 3000 times

Battery Type:LiFePO4

Rated Capacity:7Ah

Rated Voltage:12.8V

Battery cell:21700 Battery Cell

APP:Support customized

Compitable Inverter Brand:SMA, Growatt, Solax, Solis,DEYE,Sungrow, Sofar, Voltronic, Goodwe, etc.


Description

Notice

Factory Price LiFePO4 12 Volt 7ah Li Ion Battery Pack for Motorcycle and Scooters

Model
ZWN-1207LFP
ZWN-1220FP
ZWN-1250FP

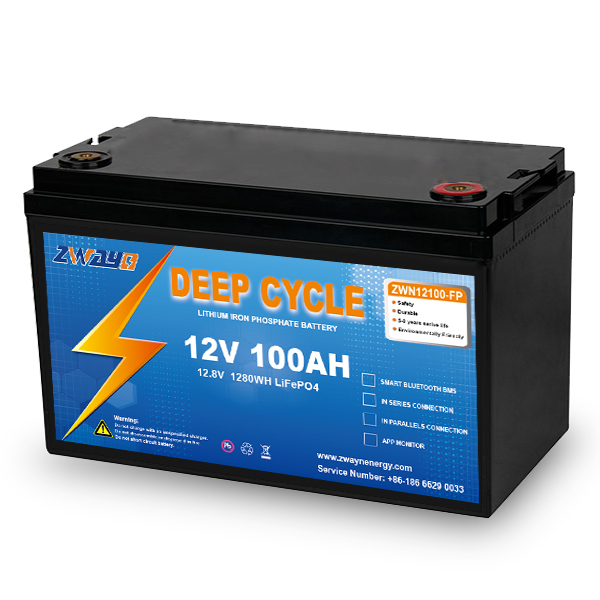

ZWN-12100FP
ZWN-12200FP
ZWN-12300FP
Nominal Voltage
12.8V
Nominal Capacity @25℃
7AH
20AH
50AH
100AH
200AH
300AH
Nominal Energy @25℃
89.6WH
256WH
640WH
1280WH
2560WH
3840WH
Battery Cell Type
Cylinder (32700 or 26650)
Prismatic 50Ah
Prismatic 100Ah
Prismatic 200Ah
Prismatic 300Ah
Configuration (*S*P)
4S1P
4S3P
4S3P
4S1P
4S2P
4S3P
Max. Continous Charge Current @25℃
7A
20A
50A
100A
200A
300A
Max.  Continous Discharge Current @25°C,10s
7A
20A
50A
100A
200A
300A
Dimension (mm)
152*65*94mm
180*172*77mm
229*138*208mm
326*171*215mm
522*240*218mm
520*240*218mm
Weight (KG)
1.1KG
3KG
7KG
13.5KG
25KG
30.5KG
DC Resistance
≤10mΩ
Full Charged Voltage
14.6V
Discharge Cut-off Voltage
10V
Operate Temperature Range
Charge: 0˚C~55˚C; Discharge: -20˚C~60˚C; Storage: -20˚C~45˚C
Humidity (non-condensing)
Max. 95%
Terminal Type
F1 terminal
Screw terminal
Cover Sealing type
Screw / gel sealing optional
Waterproof
IP65
Cycle life
100% DOD Cycles @ 25°C, 1C/1C: >2000 times; 80% DOD Cycles @ 25°C, 1C/1C: >3000 times 50% DOD Cycles @ 25°C, 1C/1C: >5000 times
Service Life
5-10 years
Warranty
3 years
