SL-1250-3

Model: SL-1250-3

Battery Type: LiFePO4

Battery Voltage: 12.8V

Battery Capacity: 50Ah

Cycle Life: 2000times

Controller: With / Without PWM controller

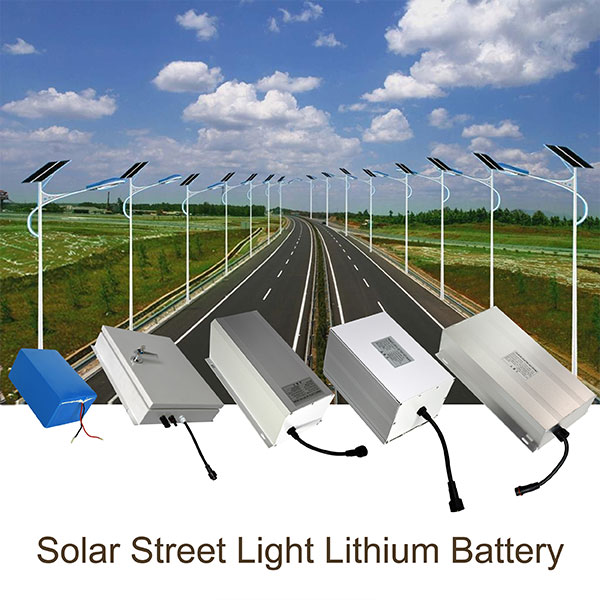

Application: CCTV/ Solar Street Light Battery


Description

● Light, powerful, and offering a very long viewing time, this Lithium-ion battery is particularly suitable for cyclic use, when batteries are frequently charged and discharged.

● Built-in BMS. 100% of the capacity is available for your needs, without voltage drop!

● Lithium batteries (Lithium Iron Phosphate) offer many advantages over lead batteries.

● They have a much faster-charging capacity, which allows you to use even the smallest amount of sunlight without being limited by the internal resistance of the battery.

● With lithium, you will charge with the maximum of what the controller can give.

● Unbeatable also when discharging, they easily withstand very fast discharges.

● Comparing the price per ampere-hour available (with lithium you have a very high depth of discharge) we can see that the price per Ah available is just a little bit more expensive than lead batteries.

● Service life at 80% depth of discharge (DoD) ≥ 3000

● Service life at 50% depth of discharge (DoD) LiFePO4 battery ≥4500


Parameter
ITEMS12.8V 50Ah
Battery TypeLiFePo4
Battery Voltage12.8V
Configuration 4S8P
cell 3.2V 6000mAh-32650
Cell internal resistance about 6mΩ or 7mΩ
System Energy 614.4WH
Over Voltage Protection15.6±0.1V
Over Discharge Voltage10.8V
Max.Charge Current 10A
Max.discharge current10A(Convert to 2A output)
50% DOD5000 times
80% DOD Cycle times3000 times
Working Temp. Range/℃ -20℃~+65℃
Storage Humidity less than or equal to 75%RH
Case Material ABS
Case waterproof gradeIP65
Battery sizecustomized
