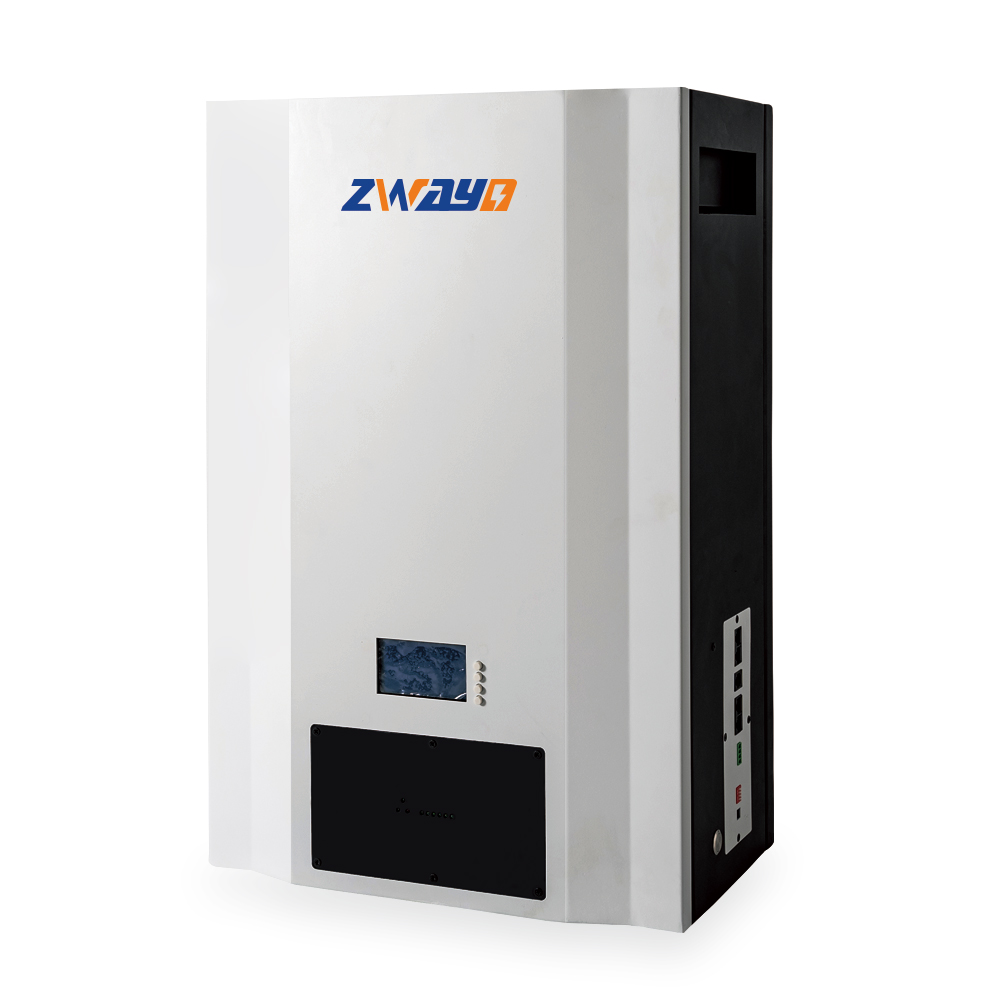

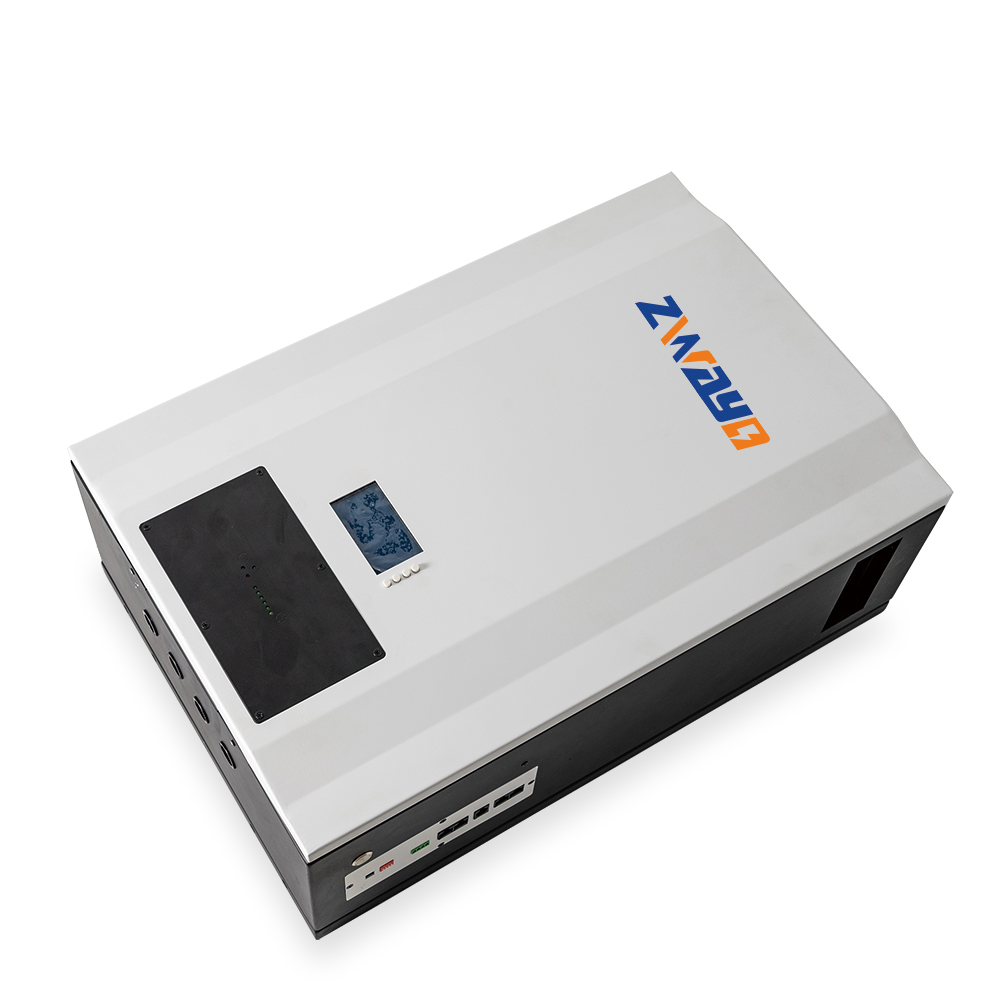

Zwayn Solar Energy Storage IP67 Powerwall LiFePO4 48V 100ah 200ah 5kwh 10kwh Li-ion Lithium Battery Energy Storage System

Parameters

Product modelEX-BOX3
Product specification51.2V 100Ah
Nominal voltage51.2V
Nominal capacity100Ah
Cell typeLFP
Standard charge voltage58.4V
Max charge current100A
Discharge cut-off voltage40V
Max discharge current100A
DisplayLCD

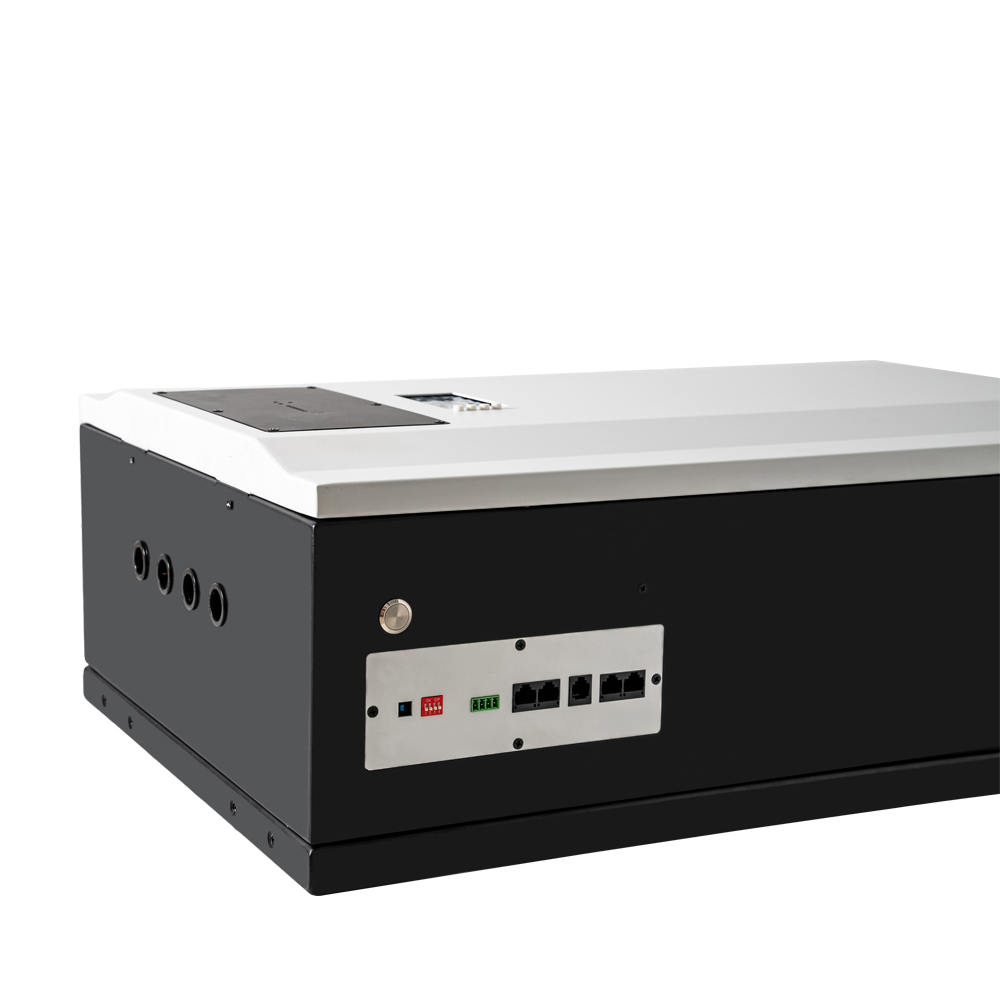

Communication interfaceRS485,RS232,CAN(Optiomal)
Cycle life≥4000Cycles(80%DOD)
Charge temperature range0~65℃
Discharge temperature range·-20~65℃
ColourBlack and white

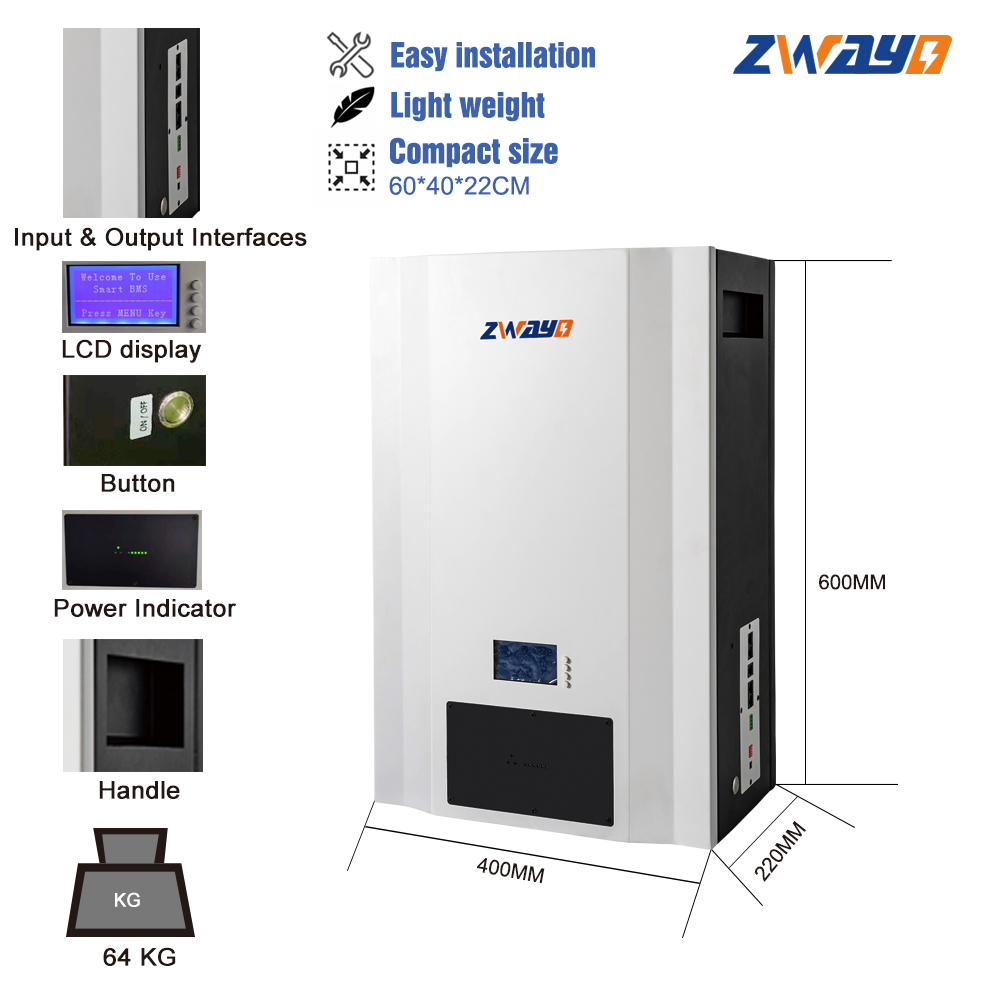

Dimensions600x400x220MM
Weight±64Kg
Installation methodWall mounted

Description

Parameters

Zwayn is a leading lithium battery manufacturer in China, which is committed to provide customers with safe and durable battery products for EV power battery, portable energy storage, household energy storage, micro power grid, telecom station power supply, UPS, solar street lights, harvesters, AGV, forklift, electric tricycles, electric wheelchairs, etc. Zwayn professional experienced technicians and advanced equipments provide customers with high-quality batteries and professional customized battery solutions. Zwayn has passed ISO 9001 ISO 14001 certification, Zwayn products have been certified with UL, CE, UN38.3, MSDS, etc.


Parameters

Product modelEX-BOX3
Product specification51.2V 100Ah
Nominal voltage51.2V
Nominal capacity100Ah
Cell typeLFP
Standard charge voltage58.4V
Max charge current100A
Discharge cut-off voltage40V
Max discharge current100A
DisplayLCD
Communication interfaceRS485,RS232,CAN(Optiomal)
Cycle life≥4000Cycles(80%DOD)
Charge temperature range0~65℃
Discharge temperature range·-20~65℃
ColourBlack and white
Dimensions600x400x220MM
Weight±64Kg
Installation methodWall mounted





box3- 副图2.jpg
