Model: ES-BOX13
Battery Type: LiFePO4
Battery Voltage: 51.2V
Battery Capacity: 100Ah
Cycle Life:≥6000 Cycle (80%DOD)
Communication: RS485/ RS232/CAN(Optional)
Installation Menthod: Wall-mounted
Application: Household Energy Storage Battery
Description

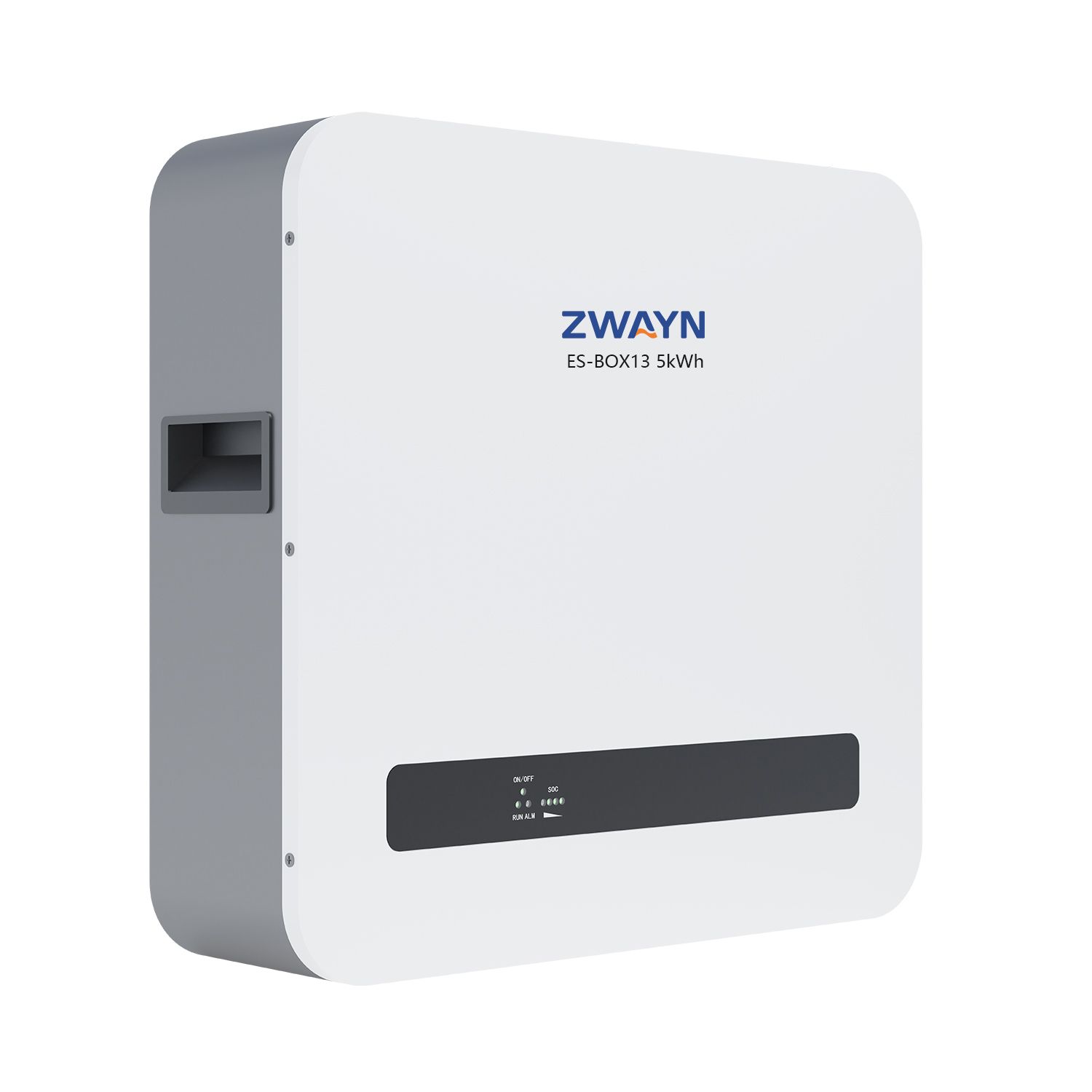

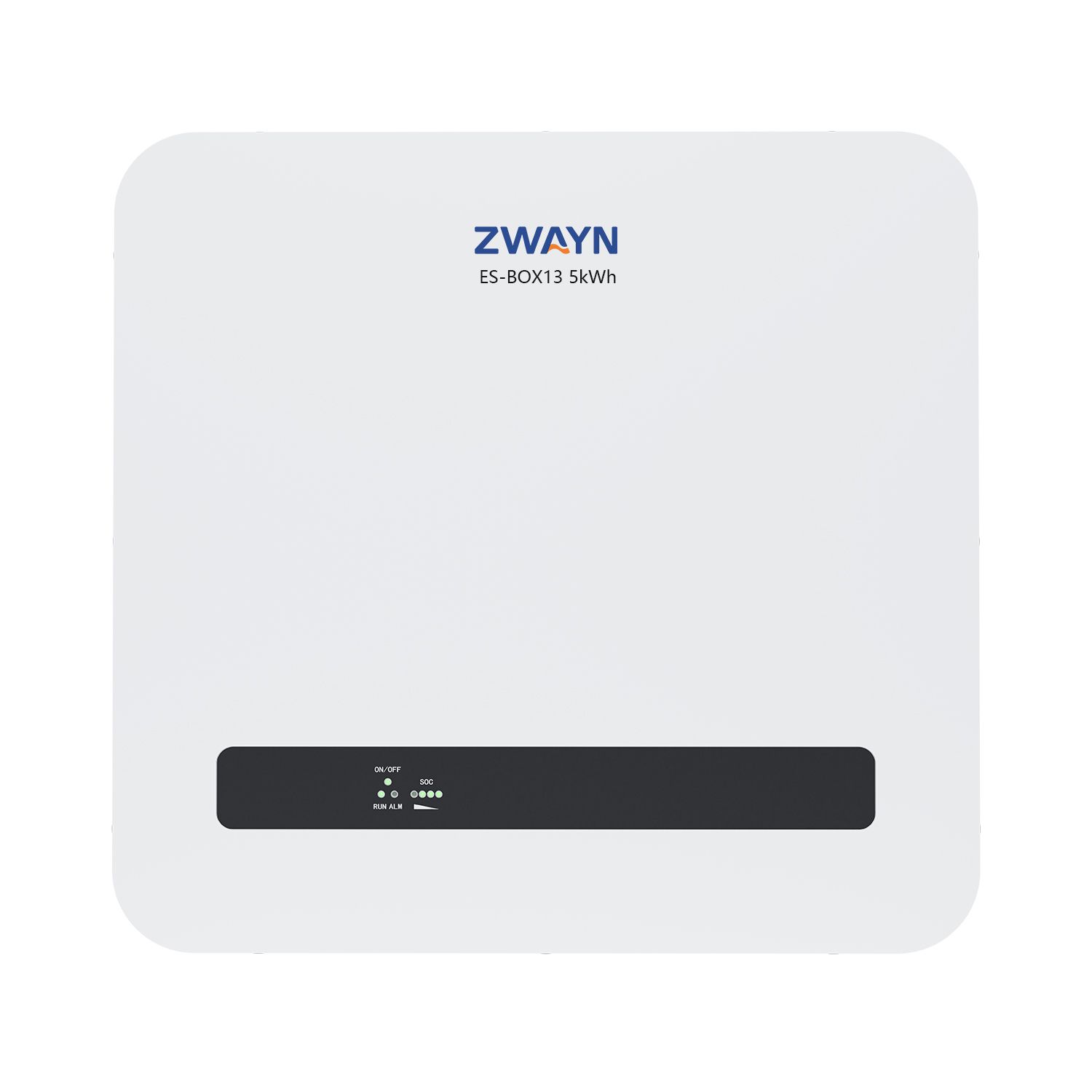

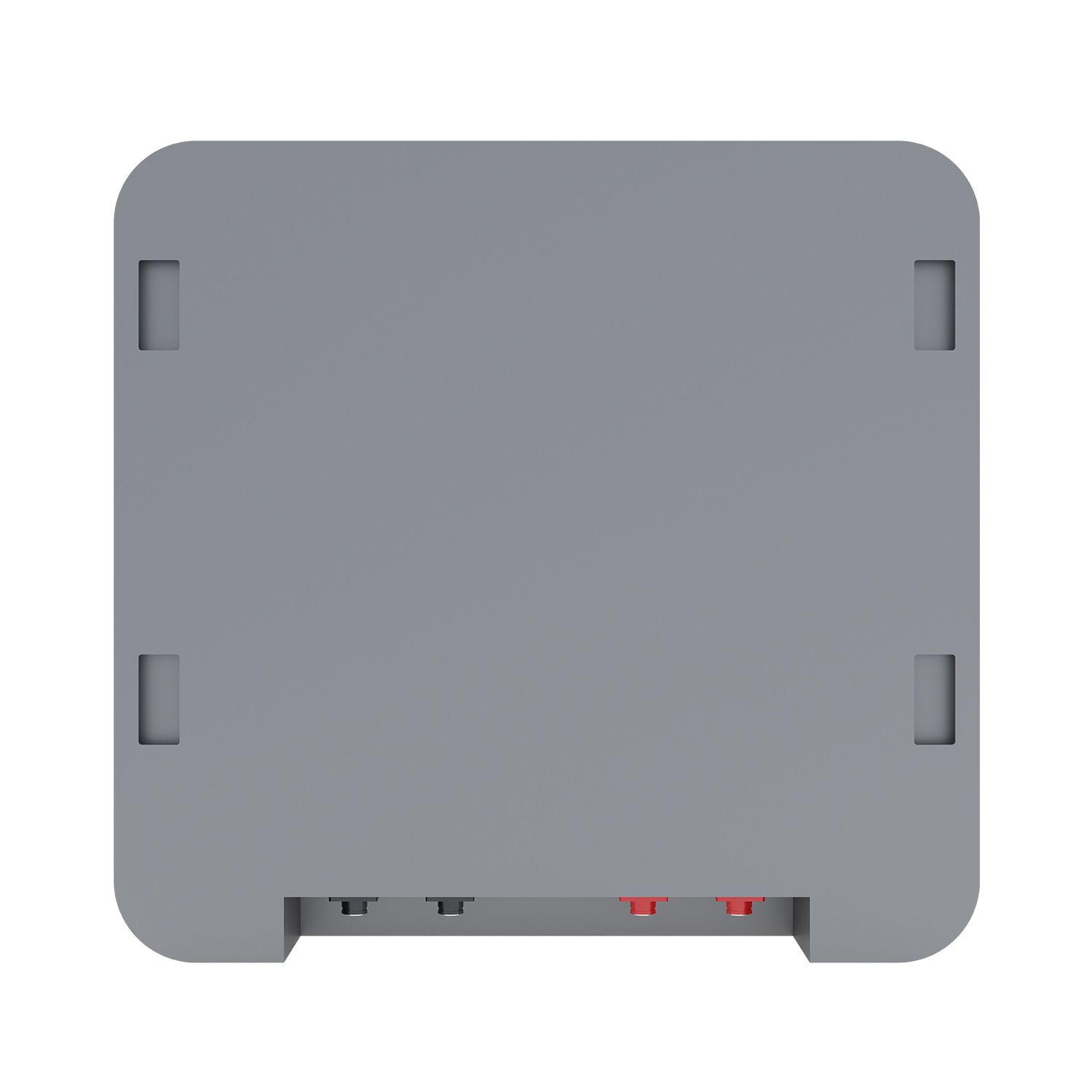

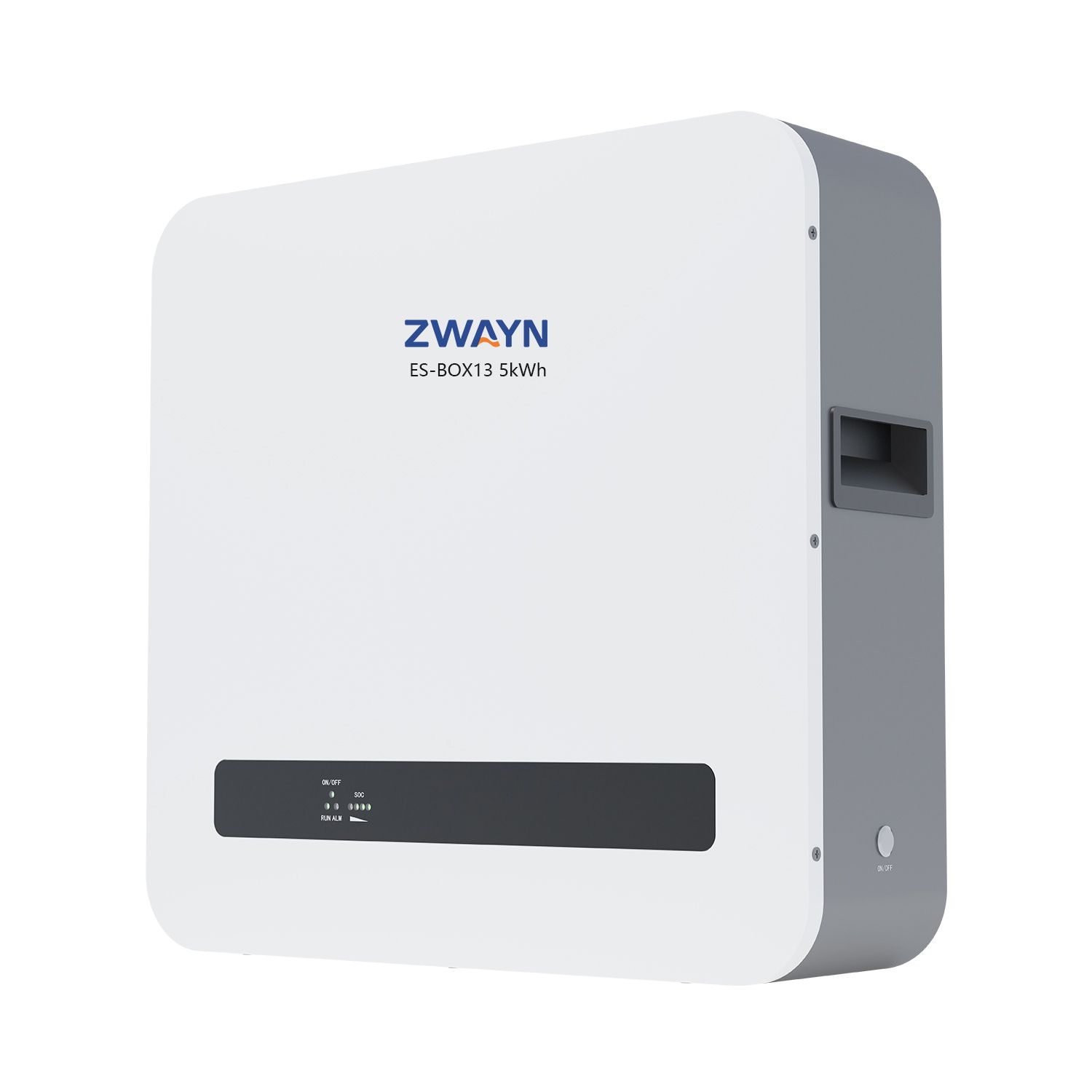

ES-BOX13 is a home energy storage battery, a single module storage battery in 5.12kWh, with an inverter to power your home.
It adopts wall-mounted installation, supports 15 batteries in parallel to expand storage capacity, and stores the maximum amount of 75kWh. It is a common energy storage battery in household energy storage systems. Zwayn provides personalized customization and OEM services.
| Model | ES-BOX13 |
| Battery Type | LiFePO4 |
| Nominal Energy | 5kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Battery Cell | 3.2V 200Ah Prismatic Battery Cell |
| Configuration (*S*P) | 16S1P |
| Discharge Cut-off Protect Voltage | 40V（adjustable） |
| Charge Cut-off Protect Voltage | 58.4V（adjustable） |
| Max. Charge Current | 100A |
| Max. Discharge Current | 100A |
| Communication Port | RS485/ RS232/CAN（Optional） |
| Compatible Inverter Brand | SMA, Growatt, Solax, Solis,DEYE,Sungrow, Sofar, Voltronic, Sorotec, Studer, etc. |
| Parallel | Max. 15 units in Parallels to get 75kWh. |
| Cycle Life | ≥6000 Cycle （80% DOD） |
| L*W*H (mm) | 527*500*150mm |
| Weight (KG) | 53Kg |
| Cooling | Natural cooling |
| Environment | Indoor |
| Discharge Temperature (℃) | -20℃~65℃ |
| Charge Temperature (℃) | 0℃~65℃ |
| Installation Method | Wall Mounted |
